Sensor Actuator Cabling Box / Connector

The Sensor Actuator Cabling Boxes Set new Standards in distributed field Cabling when it comes to space. Ideal use of space is guaranteed by the extremely flat design. In particular, the SACB-PUR version with a permanently Connected Master Cable can be installed using a minimum of space. The length of the master cable can be individually selected in steps of 0.5 m up to a maximum length of 50 m. This avoids surplus cable and unnecessary costs. Standard Types with a conductor length of 5 m and 10 m can be supplied from stock.

Sensor Actuator Cabling Box / Connector Features:
	Sensor Actuator boxes with M 8/M 12 slots and connected master cable
	Sensor Actuator boxes with M 12 Slots and M23 connection
	Sensor Actuator boxes available on Screw Connection/ Spring Connection /
	Quick fast Connection Technology
	Sensor Actuator boxes is available on IP 65 / IP 67
	Sensor Actuator Boxes are available with 4, 6 or 8 slots as an option & supplied with
	Single or double occupied slots. Two sensors can be connected Via Y type Connector.
	Boxes available on 3, 4, 5 wire system with PNP & NPN type.
	Operating Voltage upto 120V AC/DC
	Integrated LED’s indicate the status of the distributor and peripherals.
	Ambient Temperature Range : -30ºC to + 90ºC

IP 67 RJ 45 Connector

DUPLICON (Power Distributor) :

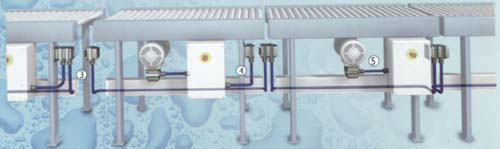

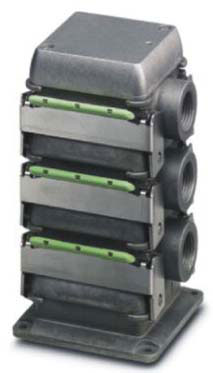

Duplicon is a seamless power distributor system for 6 X 4 Sqmm + PE conductors (25A / 400/690V) From the power rail via ST – COMBI in the control cabinet right up to the PCB or plug connection on the power load. The system has a minimum of components and is extremely flexible in its handling. The sturdy metal housing with innovative locking latches qualify DUPLICON for the harshest conditions.
The version fulfils the protection type IP 67. The contact inserts have a leading PE contact and the screw connections can be assembled with standards tools. DUPLICON serves as an interface between the control cabinet and device or actuators / drives. With connection options of 24V or AS-I bus or PROFIBUS, DUPLICON also provides a connection to the signal world, providing a wide spectrum of applications.

The pluggable design means that all the cables can be conveniently assembled in the workshop and plugged together in the plant in no time at all. All connections are touch proof in accordance with DIN VDE 0105 and fulfill the requirements of the BGV A2 accident prevention regulations.

ROUND CONNECTORS FOR SIGNALS & POWER (CONINVERS) :

Round Connector Features :
	The signal round connectors are available in the Crimp, Screw, & Solder connection
	technologies and for PCB mounting.
	Housing, consisting of an knurled cap, an inside sleeve, a hinged insulation
	sleeve, and an adapter cap.
	Cable Screw connection, including seal, the strain relief and the optional
	shielded connection.
	Contact insert, including the contact carrier and the contacts.
	A large number of round connector types are available for transmission
	capacities to 26A / 630V
	Sleeve housings, coupling housings, or panel mounting bases.
	With locking threads from M 8 to M 40
	Round Connector is 3 Pin to 28 Pin
	Straight & Angled Versions
