INTERFACE Cabling : (System cabling and wiring interface)

A wide range of automation equipment is used for control processes. Whether it is the startup of a small system with just a few I/O signals or a complex power station, both applications share a common requirement- the signals from the automation equipment must be connected to the field level as per the industry standards. INTERFACE cabling offers two wiring techniques: the VARIOFACE system cabling and the VARIOFACE wiring interfaces.

The VARIOFACE system cabling is a cabling concept that was developed especially to connect to various automation equipment. The system cabling comprises three harmonized components:

	FRONT ADAPTER
	SYSTEM CABLE
	CONTROLLER BOARD

Interface Cabling Features & Advantages
	The System concept of varioface system cabling reduces manufacturing costs
	through fast, faultless and uniform wiring of the input and output signals of a
	PLC.
	Varioface Systems cabling is available for controllers from:
	ABB
	Allen Bradley
	EMERSON
	Honeywell
	GE FANUC
	Mitsubishi Electric
	OMRON
	Schneider Electric
	Siemens
	Yokogawa
	Simple planning using the project planning cross-list
	Cost reduction through time-saving wiring
	Fault minimization through protection against polarity reversal
	Easy maintenance through modular system components.

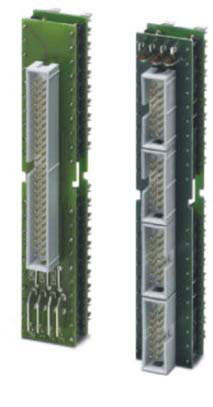

	Front adapters with an integrated pin strip (IEC 60603-13) are plugged onto the
	PLC I/O cards. They replace connection methods such as screw or crimp connection.
