PHOENIX CONTACT PCB
connectors have always fulfilled the high
quality requirement of industrial
electronics. As a world leader in the field
of PCB connectors having more than 13000
different products, PHOENIX CONTACT offers
solution to all types of your PCB
termination requirements.

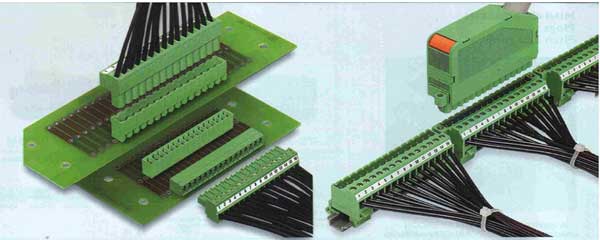

When it comes to designing your printed
circuit board connection so that it is
cost-effective, Service-friendly, and neatly
arranged, the print terminals and the
COMBICON range from PHOENIX CONTACT are the
ideal choice. It consists of male female
pluggable PCB connector. This range offers
convenient and error free wiring solution.
With two to twenty four pole options it
offers a convenient tool to design PCB with
as many numbers of terminations as required
by customer. The polarity protection
prevents wrong making of male & female
Connectors.
The range is classified on the basis of
:-
1] The pitch, Varying from 2.54mm to 15mm
2] The wire size, ranging from 0.14 Sqmm to
16 Sqmm
3] Termination principle of Screw, Spring &
Crimp
4] Various conductor entry direction i.e.
Vertical, Horizontal and Angled
5] Ampere rating 125A
6] In direction parallel to the conductor
Axis
7] In direction vertical to the PCB.
Connection point facing the rippled side of
the header.
8] With side panels plug in direction
parallel to PCB.
|
